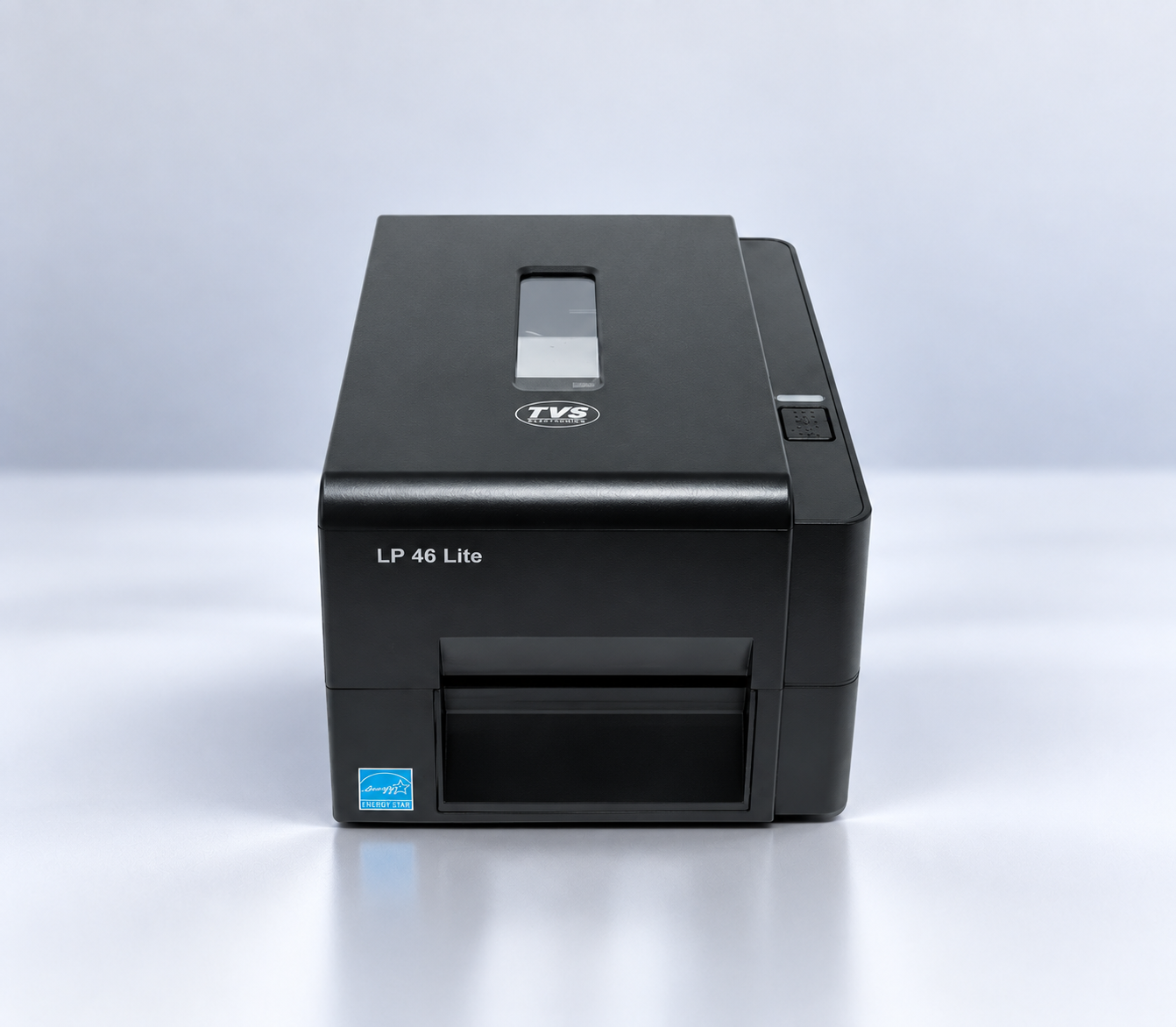

LP 46 LITE LABEL PRINTER

The LP 46 Lite is a reliable desktop label printer designed to deliver fast and efficient label printing. With a compact design and durable construction, it offers a print speed of up to 6 inches per second and supports both direct thermal and thermal transfer printing. Its 203 DPI resolution, high ribbon capacity of 300 meters, and USB 2.0 interface make it suitable for retail, logistics, hospitality, and manufacturing environments.

Main Features

4-inch label printing capability
203 DPI resolution
Print speed up to 6 inches per second
High ribbon capacity of 300 meters
Durable and strong design
Supports direct thermal and thermal transfer printing
USB 2.0 interface
Maximum print width of 108 mm (4.25")
Maximum print length of 2,794 mm (110")
Supports continuous, die-cut, black mark, fanfold, and notched media
Compatible with EPL, ZPL, and ZPL II through TSPL EZ
Supports 1D and 2D barcodes
Suitable for retail, logistics, hospitality, and manufacturing environments

Key Highlights

Fast Label Printing: Provides print speeds of up to 152.4 mm (6") per second.
203 DPI Resolution: Delivers 8 dots/mm and 203 DPI printing resolution.
High Ribbon Capacity: Supports ribbons up to 300 meters long with a maximum OD of 67 mm.
Durable Desktop Design: Compact, strong, and durable construction for demanding working environments.
Flexible Printing: Supports both direct thermal and thermal transfer printing methods.

Technical Specifications

Resolution	8 dots/mm, 203 DPI
Printing Method	Thermal Line Printing – Direct Thermal & Thermal Transfer
Print Speed	Max. 152.4 mm (6")/second
Print Width	Max. 108 mm (4.25")
Print Length	Max. 2,794 mm (110")
Physical Dimension	204 mm W × 164 mm H × 280 mm D
Weight	2.4 kg (5.29 lbs)
Label Roll Capacity	127 mm (5") OD
Ribbon	300 m long, max. OD 67 mm, 1" core, ink coated outside
Ribbon Width	40 mm to 110 mm (1.6" ~ 4.3")
Processor	32 bit RISC CPU
Memory	8 MB Flash memory, 16 MB SDRAM
Interface	USB 2.0
Power Input	AC 100-240V, 2.5A, 50-60Hz Output: DC 24V, 2.5A, 60W
Sensors	Transmissive gap sensor, black mark reflective sensor, position adjustable

Barcode Specifications

1D Barcode	Code 128UCC, Code 128 subsets A/B/C, EAN128, Interleaved 2 of 5, Code 39, Code 93, EAN13, EAN8, UPCA, UPCE, Codabar, Postnet, MSI, PLESSEY, China Post, ITF14, Code 11, TELEPEN, PLANET, Code49, LOGMARS
2D Barcode	GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
Printer Language	TSPL EZ compatible with EPL, ZPL, ZPL II

Media Specifications

Media Type	Continuous, die-cut, black mark, fanfold, notched, outside wound
Media Width	20 ~ 112 mm (0.8" ~ 4.4")
Media Thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media Core Diameter	25.4 ~ 38 mm (1" ~ 1.5")
Label Length	5 ~ 2,794 mm (0.2" ~ 110")

Environment Condition

Operation	5°C ~ 40°C, 25 ~ 85% noncondensing
Storage	-40°C ~ 60°C, 10 ~ 90% noncondensing

Product Highlights

Compact Desktop Label Printer: Compact dimensions of 204 mm W × 164 mm H × 280 mm D with a durable and strong design.
High-Speed Printing: Provides printing speeds of up to 152.4 mm (6") per second.
Flexible Printing Methods: Supports direct thermal and thermal transfer printing.
Large Ribbon Capacity: Supports a 300-meter-long ribbon for extended label printing.
Wide Barcode Support: Supports a broad range of 1D and 2D barcode formats, including QR Code, PDF417, DataMatrix, AZTEC, and Maxicode.
Multiple Media Options: Supports continuous, die-cut, black mark, fanfold, and notched media.
USB Connectivity: Equipped with a USB 2.0 interface for connectivity.
