At AM Retail and Technology, we specialize in providing high-quality sensors and control solutions to industries across India. As authorized Channel Partners of global brands like SICK and Adel System, we bring world-class technology to the Indian market. Our technical expertise and commitment to customer satisfaction make us the preferred choice for businesses seeking automation excellence.

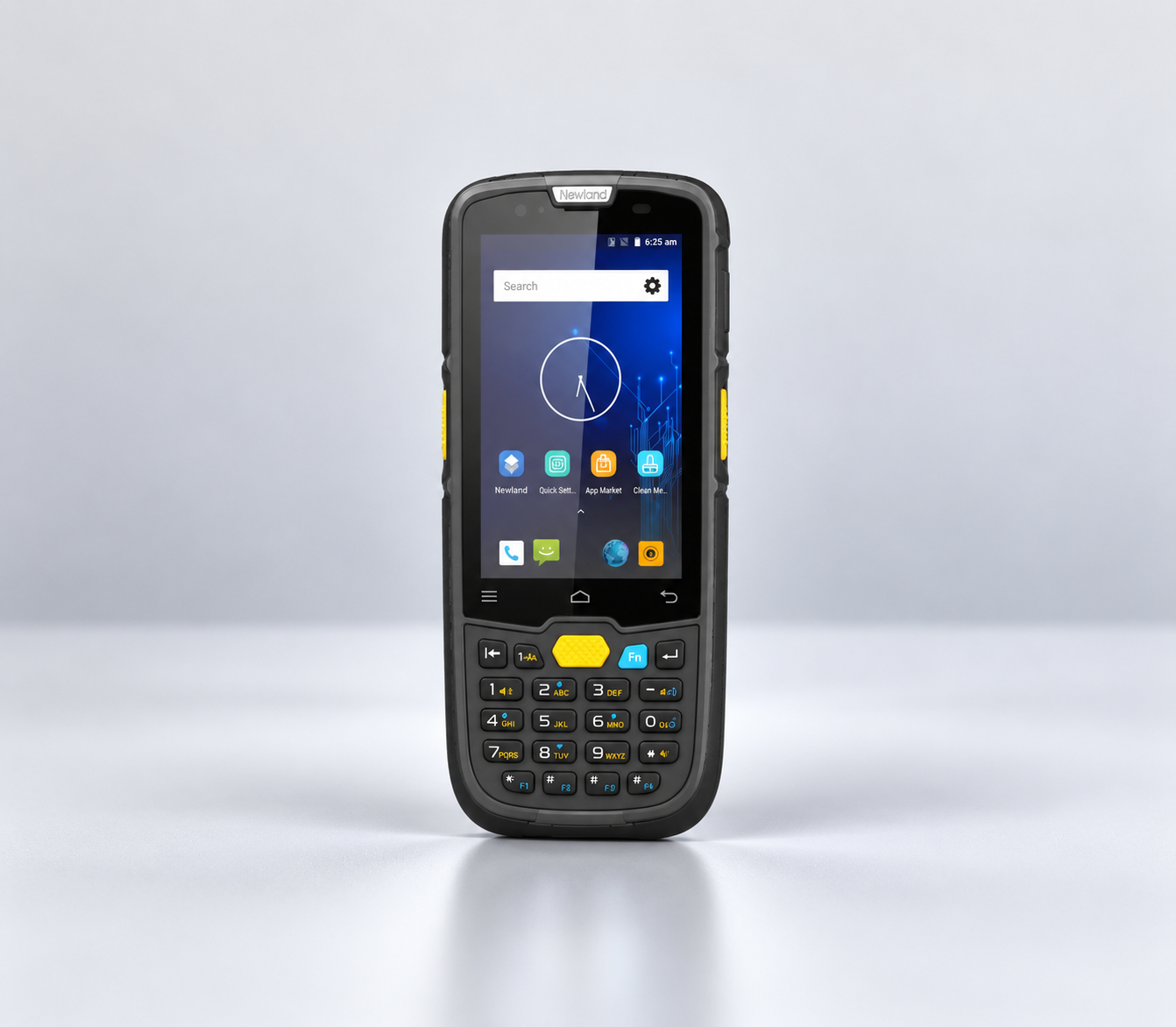

The Newland MT67 Mobile Terminal is a rugged mobile terminal designed for transportation, logistics, and manufacturing applications. It features a 4" WVGA capacitive touch screen, Android 15 operating system, and a 2.0GHz octa-core 64-bit processor with 4GB RAM and 64GB ROM for smooth data processing and operation. The MT67 combines Newland's fifth-generation UIMG® barcode reading technology with 1D and 2D scanning capabilities, IP65/IP67 optional sealing, and 1.5m drop resistance for reliable use in demanding industrial environments.
| Processor | 2.0GHz, octa-core 64-bit processor |
|---|---|
| Operating System | Android 15 |
| Memory | 4GB RAM, 64GB ROM |
| Barcode Scanning |
1D:
Code128, Code 49, Code 16K, (GS1128) UCC/EAN-128,
AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6,
ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5,
Code39, ISSN, ISBN, Codabar, Code93, Code 11,
Plessey, MSI Plessey, RSS
2D: Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode |
| Depth of Field |
Code39 (20mil): 90mm-600mm EAN13 (13mil): 60mm-420mm Code39 (5mil): 102mm-205mm DM (10mil): 110mm-275mm PDF417 (6.7mil): 90mm-173mm QR (15mil): 40mm-230mm |
| Dimensions (L × W × H) | 162(L) × 68(W) × 17(H) mm |
|---|---|
| Weight | 250g |
| Display | 4" WVGA (800×480) capacitive touch screen, Corning Gorilla Glass |
| Keypad | 24 keys (side keys included) with backlight + 3 virtual keys |
| Notification | Vibrator, speaker (2 watt) and multi-color LEDs |
| Battery | 3.8V, 4800mAh, hot-swap support |
| GPS | GPS (AGPS), GLONASS |
| Camera |
Front camera: 5 megapixels Rear camera: 13 megapixels, auto focus, with LED flashlight |
| AC Adapter | Output: DC5/7/9V, 1.67A; Input: AC100~240V, 50~60Hz; fast charging supported |
| Expansion | Micro SD/TF card (max. 128GB) |
| Sensor | Light & Proximity sensor, accelerometer sensor |
| Interface | USB Type-C, battery charging over USB supported, USB earphone supported |
| Operating Temperature | -20℃ to 55℃ (-4°F to 122°F) |
|---|---|
| Storage Temperature | -30℃ to 70℃ (-22°F to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| Static Discharge | ±15 kV (Air discharge), ±8 kV (Direct discharge) |
| Drop | 1.5m drops to concrete (for six sides, one drop per side) |
| Sealing | IP65/IP67 (Optional) |
| Frequency | 13.56MHz RFID |
|---|---|
| Supported Standards | ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693 |
| WLAN RADIO | Built-in 802.11 a/b/g/n/ac, compatible with 11d/h/i/k/r/v/w, support 2.4G and 5G dual frequency |
|---|---|
| WWAN RADIO |
Roaming: Support Fast Roaming
2G: GSM: 850/900/1800/1900MHz 3G: WCDMA (B1, B2, B5, B8); CDMA2000 1X/EV-DO Rev. A (BC0); TD-SCDMA (B34, B39) 4G: TD-LTE (B34, B38, B39, B40, B41) FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b) |
| SIM Card | Nano + Nano or Nano + TF |
|---|
| Optional Accessories | AC adapter, cable, charging cradle, hand strap, 4-slot charger |
|---|
