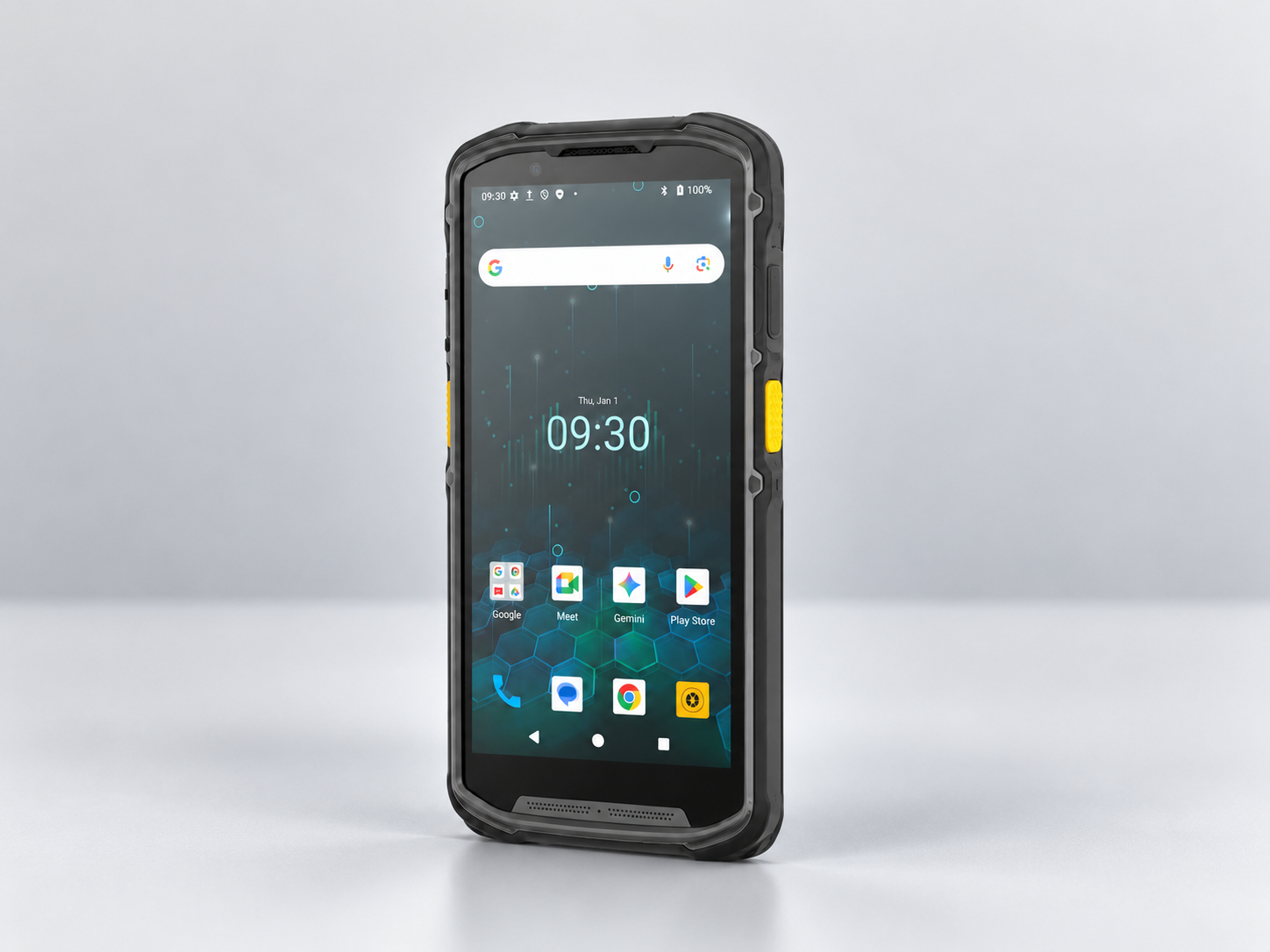

NEWLAND MT 90 MOBILE TERMINAL

The Newland MT90 Mobile Terminal is a rugged mobile terminal designed for retail, warehouse, healthcare, transportation & logistics, and public sector applications. It features a 5" multi-color capacitive touch screen with tempered glass and IPS display for clear viewing in indoor and outdoor environments. The MT90 supports Android, WLAN, WWAN, WPAN, Bluetooth, 1D and 2D barcode scanning, 4G, 3G, GPS, camera, and NFC functionalities. With IP65/IP67 sealing and 1.5m drop resistance, it is designed for reliable operation in demanding environments.

Main Features

5" multi-color capacitive touch screen
IPS display with tempered glass for clear indoor and outdoor viewing
Android operating system
Supports 1D and 2D barcode scanning
Newland sixth-generation barcode reading technology
2D megapixel scanning engine for superior barcode reading performance
Decodes poor-quality, soiled, and wrinkled barcodes
Dual SIM card system
WLAN, WWAN, and WPAN connectivity
WiFi with 2.4GHz and 5GHz dual-frequency support
4G and 3G connectivity
Bluetooth support
GPS support
Camera functionality
NFC support with 13.56MHz RFID
IP65 sealing with IP67 protection also specified
1.5m drop resistance to concrete
Designed for retail, warehouse, healthcare, transportation & logistics, and public sector applications

Applications

Retail
Warehouse
Healthcare

Transportation
Logistic
Public Sector

Performance Specifications

Processor	Not specified
Operating System	Android
Memory	Not specified
Interface	Not specified
Barcode Scanning	1D Barcode: CMOS (≥ 5 mil) 2D Barcode: CMOS (≥ 5 mil)
Depth of Field	Depends on barcode type and environment.

Physical & Electrical Specifications

Dimensions (L × W × H)	155 × 78 × 20 mm
Weight	265g
Display	5" multi-color capacitive touch screen, tempered glass and IPS display
Keypad	Not specified
Notification	Not specified
Battery	Not specified
Camera	Camera functionality supported
GPS	GPS supported
Expansion	Not specified
AC Adapter	Not specified
Network Connection	WLAN, WWAN, WPAN

Environmental Specifications

Operating Temperature	Not specified
Storage Temperature	Not specified
Humidity	Not specified
Static Discharge	Not specified
Drop	1.5m drop resistance to concrete
Tumble Spec.	Not specified
Sealing	IP65, IP67

NFC Specifications

Frequency	13.56MHz RFID

Wireless Specifications

WLAN RADIO	EU: IEEE 802.11 a/b/g/n/ac, 2.4GHz and 5GHz
WWAN RADIO	2G: GSM (850/900/1800/1900MHz) 3G: WCDMA (B1/B2/B5/B8); TD-SCDMA 1x/EVDO (B34/B39); CDMA 1x/EVDO (BC0) 4G: FDD-LTE (B1/B2/B3/B5/B7/B8/B20/B28); TDD-LTE (B34/B38/B39/B40/B41)
WPAN RADIO	Bluetooth supported

Certifications

Certificates & Protection	FCC Part15 Class B, CE EMC Class B

Product Highlights

5" Multi-color Capacitive Touch Screen: IPS display with tempered glass provides a good viewing angle and clear visibility for indoor and outdoor use.
Diverse Functionalities: Supports dual SIM, Bluetooth, 1D/2D barcode scanning, WiFi, 4G, 3G, GPS, camera, and NFC functionalities.
Industrial-grade Durability: IP65 sealing and 1.5m drop resistance to concrete provide reliable operation in demanding environments.
Superior Barcode Reading: Newland sixth-generation technology and a 2D megapixel engine provide reliable decoding of poor-quality, soiled, and wrinkled barcodes.
Wide Wireless Connectivity: Supports WLAN, WWAN, WPAN, 2.4GHz and 5GHz WiFi, 3G, and 4G connectivity.
