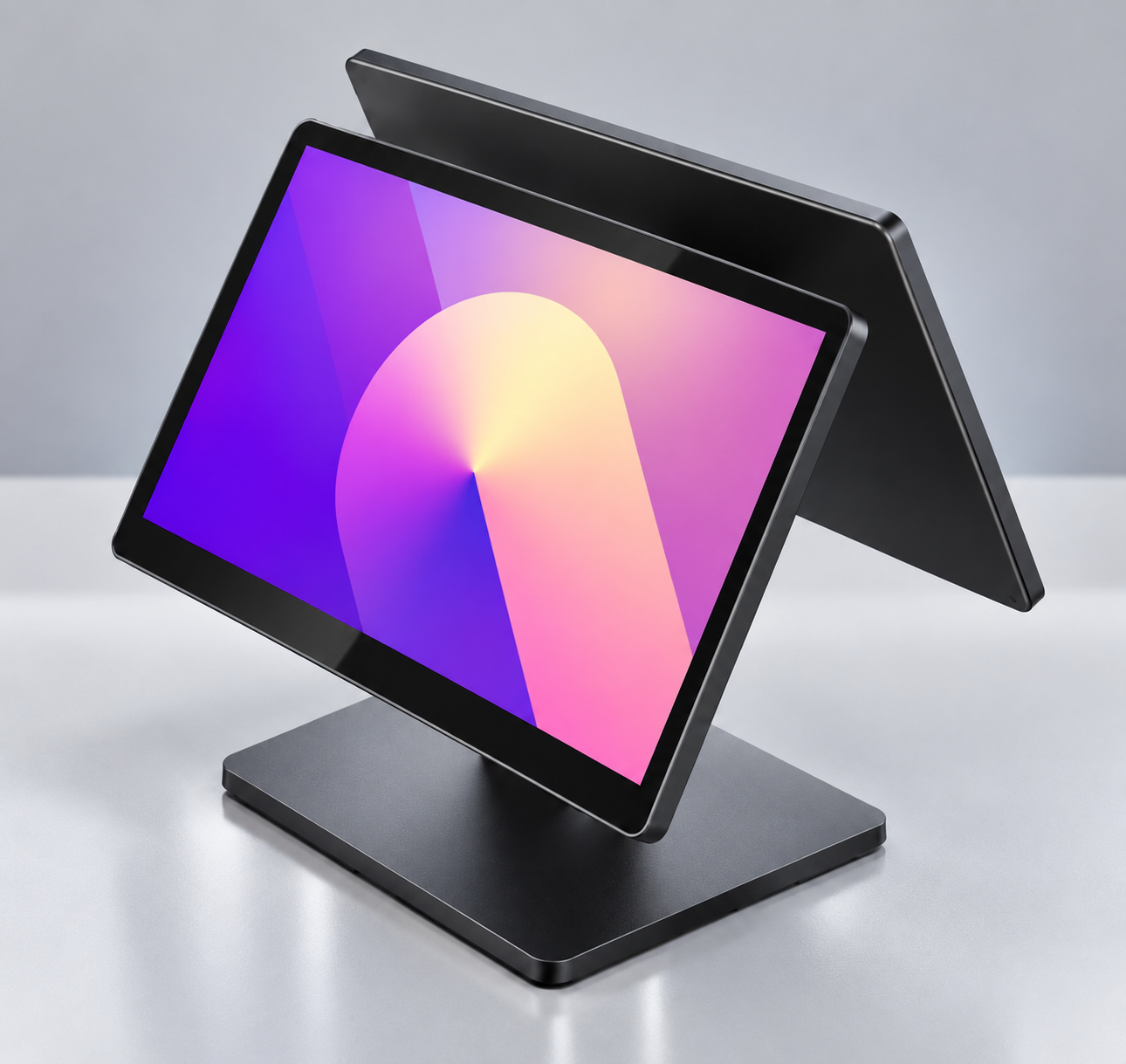

IMIN SWAN 2 PRO

The iMin Swan 2 Pro integrates AI and versatility to transform modern business operations. It supports all-in-one configurations with single-screen and dual-screen setups, along with out-of-box AI capabilities, flexible accessories, and HDMI compatibility. Powered by an octa-core processor and Android 15, the Swan 2 Pro delivers high computing performance, efficient operation, and advanced connectivity for demanding business environments.

Main Features

15.6" Full HD display with 1920 × 1080 resolution
All-in-one single-screen and dual-screen configurations
Octa-core processor with Dual-Core Arm Cortex-A76 and Hexa-Core Arm Cortex-A55
Dual-Core Arm Cortex-A76 up to 2.2GHz
Hexa-Core Arm Cortex-A55 2.0GHz
Android 15 64-bit operating system
6GB RAM + 64GB ROM
Optional 10.1" HD or 15.6" Full HD secondary display
Out-of-box AI capabilities integrated into the hardware
NFC, NFC + Scanner, and NFC + Camera accessory options
Wi-Fi 6 and Bluetooth 5.4 connectivity
1000M Ethernet connectivity
USB-A × 5, USB-C × 1, HDMI × 1, RJ11 × 1, RJ12 × 1 and RJ45 × 1
TF Card support up to 1TB
Optional thermal printer configuration

Key Highlights

Out-of-Box AI Capabilities: Swan 2 Pro comes with AI features embedded into its hardware, allowing AI capabilities to be deployed with a few simple steps.
High Computing Performance: The octa-core processor combines a dual-core Arm Cortex-A76 with a hexa-core Arm Cortex-A55 for demanding business operations.
Large Full HD Display: Features a 15.6" Full HD display with 1920 × 1080 resolution.
Flexible Display Configurations: Supports single-screen and dual-screen setups with optional 10.1" HD or 15.6" Full HD secondary displays.
Modern Android Platform: Runs on Android 15, 64-bit.
Expandable Accessories: Supports NFC, NFC + Scanner, and NFC + Camera accessory options.
Fast Connectivity: Supports Wi-Fi 6, Bluetooth 5.4, and 1000M Ethernet.
Extensive Peripheral Support: Provides USB-A, USB-C, HDMI, RJ11, RJ12, RJ45, headphone jack, DC jack, Pogo pin, and TF Card interfaces.

Technical Specifications

Processor	Octa-Core (Dual-Core Arm Cortex-A76 + Hexa-Core Arm Cortex-A55 2.0GHz)
CPU	Dual-Core Arm Cortex-A76 2.2GHz + Hexa-Core Arm Cortex-A55 2.0GHz
Memory	6GB RAM + 64GB ROM
Display	15.6" Full HD, 1920 × 1080
Secondary Display	15.6" Full HD, 1920 × 1080; 10.1" HD, 1280 × 800
Operating System	Android 15, 64-bit
Ethernet	1000M
Bluetooth	Bluetooth 5.4
Wi-Fi	Wi-Fi 6, 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz)
Speaker	1.5W
Operating Temperature	-10°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Dimensions	365 × 189 × 303 mm
Button	Power key, Recovery key, Loader key
Power Adapter	Input: 100 ~ 240V, Output: 24V / 1.5A
Peripheral Ports	USB-A × 5, USB-C × 1, 3.5mm Headphone Jack × 1, DC Jack × 1, HDMI × 1, RJ11 × 1, RJ12 × 1, RJ45 × 1, Pogo pin (12 pin), TF Card up to 1TB × 1
Accessories	NFC + Scanner, NFC, Camera
Certification	Google GMS, FCC, CE, IMDA, WEEE

Out-of-Box AI Capabilities

AI features embedded directly into the hardware
Designed to reduce software development costs
AI capabilities can be easily deployed with a few simple steps
Smart business capabilities including Voice Control

Simultaneous Interpretation
Smart Macro
Gesture Control
OCR Translation

Display & Configuration

15.6" Full HD main display
1920 × 1080 main display resolution
10.1" HD secondary display option
15.6" Full HD secondary display option

Single-screen configuration
Dual-screen configuration
All-in-one design

Connectivity & Peripherals

Wi-Fi 6 connectivity
Bluetooth 5.4 connectivity
1000M Ethernet connectivity
USB-A × 5
USB-C × 1
HDMI × 1

RJ11 × 1 and RJ12 × 1
RJ45 × 1
3.5mm headphone jack × 1
DC jack × 1
Pogo pin (12 pin)
TF Card up to 1TB × 1

Product Highlights

AI-Enabled POS: Integrates out-of-box AI capabilities into the hardware to support efficient modern business operations.
Powerful Processing: Octa-core processing with Dual-Core Arm Cortex-A76 and Hexa-Core Arm Cortex-A55 supports demanding workloads.
Modern Android Platform: Android 15 64-bit operating system provides the platform for modern POS applications.
Flexible Display: Supports 15.6" Full HD main display along with optional 10.1" HD or 15.6" Full HD secondary displays.
Extensive Connectivity: Wi-Fi 6, Bluetooth 5.4, 1000M Ethernet and multiple peripheral ports provide flexible connectivity.
Flexible Accessories: Supports NFC, NFC + Scanner, and NFC + Camera configurations.
Business-Ready Design: All-in-one configurations and extensive peripheral support provide flexibility for modern business requirements.
