IMIN FALCON

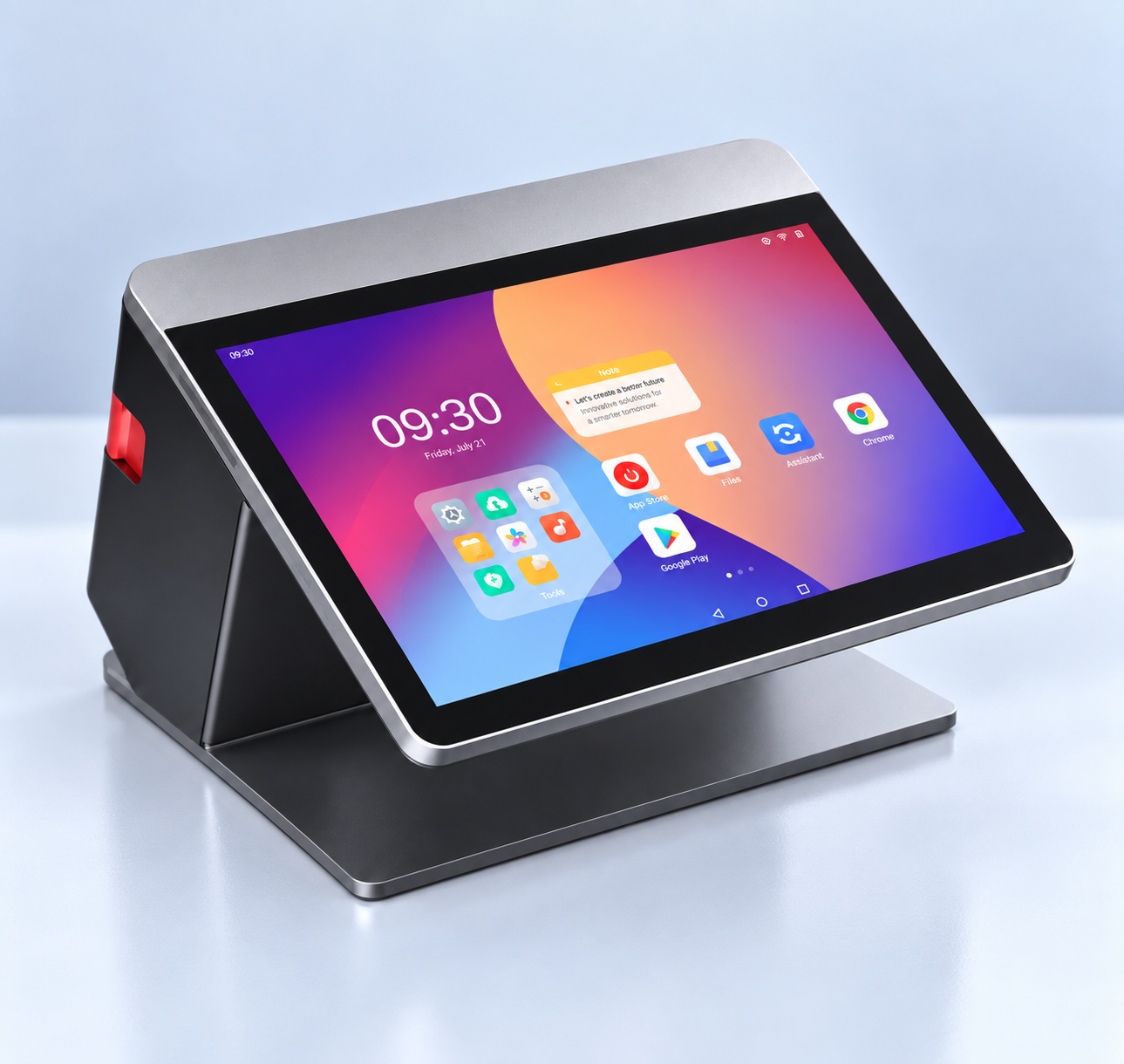

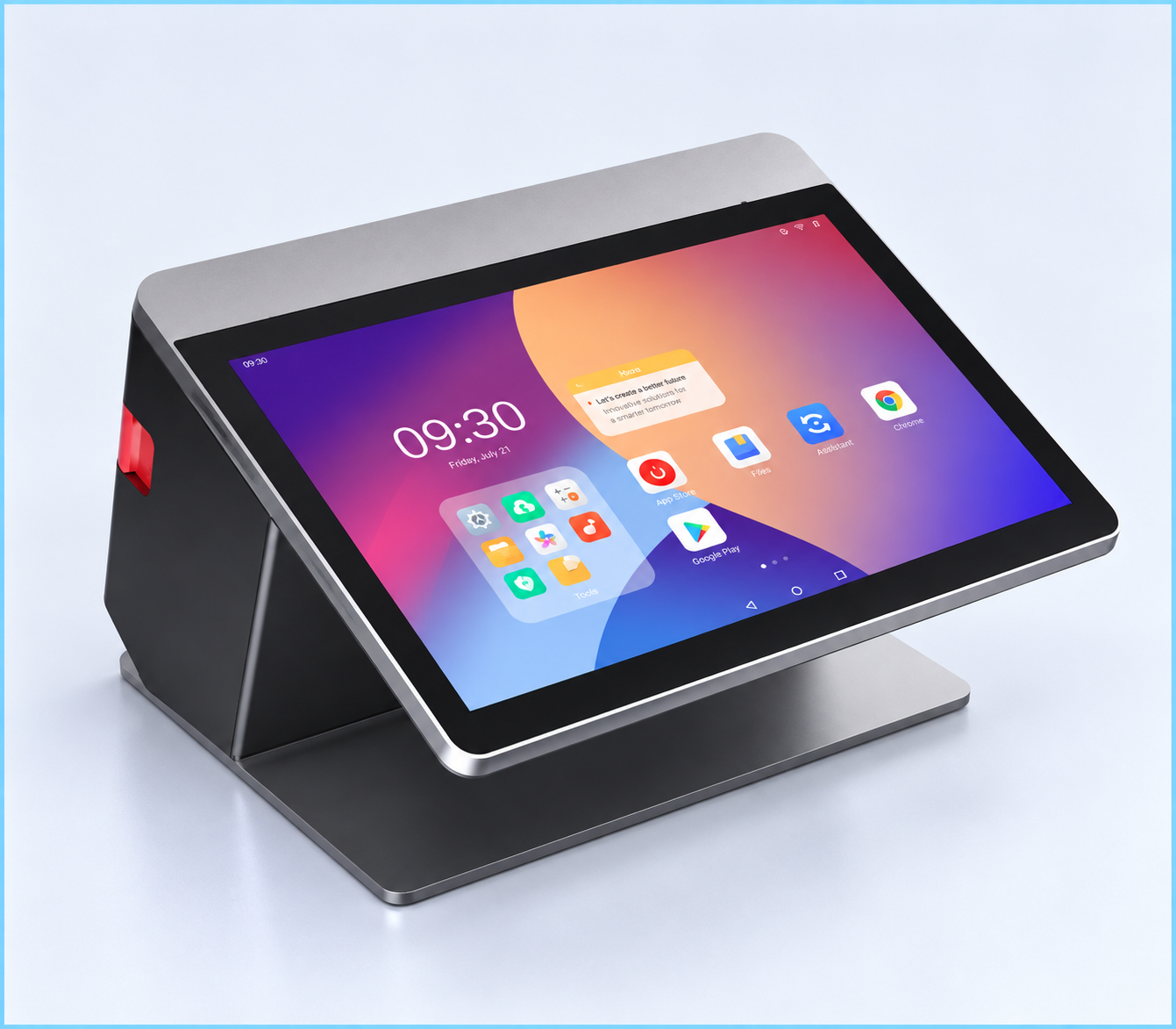

The iMin Falcon 1 is an all-in-one POS solution designed to simplify modern business operations. It combines an 80mm thermal printer, NFC payment options, a built-in camera, and multiple peripheral ports in a single compact design. With a 15% increase in CPU performance, a 10.1" display, Android 11, and support for Wi-Fi, Bluetooth, 4G, and GPS, the Falcon 1 provides efficient and reliable performance for everyday business tasks while reducing countertop clutter.

Main Features

All-in-one POS design with integrated thermal printer
10.1" display with 1280 × 800 resolution
2.4" LED secondary screen
Android 11, 64-bit operating system
15% increase in CPU performance
Octa-core processor with Dual-Core ARM Cortex-A75 and Six-Core ARM Cortex-A55
2GB RAM + 16GB ROM or 4GB RAM + 32GB ROM configurations
80mm thermal printer with automatic cutter
Printing speed of up to 250mm/s
NFC payment support with optional NFC configuration
0.3M fixed-focus camera for 1D barcode and 2D QR scanning
Wi-Fi 5, Bluetooth 5.0, 4G LTE, and GPS connectivity
Multiple peripheral ports for attachments
Portable charger support for on-the-go operation

Key Highlights

All-in-One POS Solution: Combines an 80mm thermal printer, NFC payment options, camera, display, and connectivity features into one POS device.
Efficient Performance: Provides a 15% increase in CPU performance for fast response times and reliable everyday business operations.
Integrated Thermal Printer: Features an 80mm × 80mm thermal printer with an automatic cutter and printing speeds of up to 250mm/s.
Large Touch Display: Features a 10.1" 1280 × 800 multi-point capacitive touch panel along with a 2.4" LED screen.
Contactless Payments: Supports NFC payment options for a clean and modern checkout experience.
Built-in Camera: The 0.3M fixed-focus camera supports 1D barcode and 2D QR scanning.
Flexible Connectivity: Supports Wi-Fi 5, Bluetooth 5.0, 4G LTE, GPS, and Ethernet connectivity.
Portable Operation: Can be powered with portable chargers to support business operations on the go.

Technical Specifications

Processor	Octa-Core (Dual-Core ARM Cortex-A75 up to 2.0GHz + Six-Core ARM Cortex-A55 up to 2.0GHz)
Touch Panel	Multi-point Capacitive Touch Panel
Memory	2GB RAM + 16GB ROM; 2GB RAM + 16GB ROM (NFC); 4GB RAM + 32GB ROM (NFC)
Display	10.1" 1280 × 800 and 2.4" LED Screen
Operating System	Android 11, 64-bit
Ethernet	100M
Wi-Fi	Wi-Fi 5, 802.11 a/b/g/n/ac (2.4GHz / 5GHz)
Bluetooth	Bluetooth 5.0
Mobile Network	2G / 3G / 4G LTE
GPS	GPS
NFC	Optional NFC
Camera	0.3M Fixed Focus; Support 1D Barcode / 2D QR Scanning
Speaker	1.5W Mono
Operating Temperature	0°C ~ 40°C
Storage Temperature	-10°C ~ 50°C
Dimensions	248 × 199 × 140 mm
Weight	1.785 Kg
Button	Power key, Vol+ / Vol- key
Printer	High-speed printing up to 250mm/s, automatic cutter, 80mm width and 80mm diameter
Power Adapter	Input: 100 ~ 240V; Output: 24V / 2.5A
Peripheral Ports	USB Type-A × 2, DC Jack × 1, Nano SIM × 1, PSAM × 1, TF Card × 1, RJ11 × 1, RJ12 × 1, RJ45 × 1
Certification	FCC, CE, IMDA, WEEE

Display & Printer

10.1" display with 1280 × 800 resolution
2.4" LED screen
Multi-point capacitive touch panel
80mm thermal printer

Printing speed up to 250mm/s
Automatic printer cutter
80mm paper width and 80mm paper diameter

Performance & Connectivity

Octa-core processor
Dual-Core ARM Cortex-A75 up to 2.0GHz
Six-Core ARM Cortex-A55 up to 2.0GHz
15% increase in CPU performance
Android 11, 64-bit
2GB RAM + 16GB ROM configuration
2GB RAM + 16GB ROM with NFC configuration

4GB RAM + 32GB ROM with NFC configuration
Wi-Fi 5 connectivity
Bluetooth 5.0 connectivity
2G / 3G / 4G LTE connectivity
GPS connectivity
100M Ethernet

NFC & Scanning

Optional NFC payment support
Instant contactless payment capability
Built-in 0.3M fixed-focus camera

Supports 1D barcode scanning
Supports 2D QR scanning
Camera integrated into the all-in-one POS design

Peripheral Ports

USB Type-A × 2
DC Jack × 1
Nano SIM × 1
PSAM × 1

TF Card × 1
RJ11 × 1
RJ12 × 1
RJ45 × 1

Product Highlights

All-in-One Design: Integrates POS display, thermal printer, NFC options, camera, and connectivity into a single device.
Fast Printing: Integrated 80mm thermal printer delivers printing speeds of up to 250mm/s with an automatic cutter.
Efficient Performance: Provides a 15% increase in CPU performance for smooth and reliable everyday business tasks.
Contactless Payments: Optional NFC support enables instant contactless payments without requiring external hardware.
Barcode Scanning: Built-in 0.3M fixed-focus camera supports 1D barcode and 2D QR scanning.
Flexible Connectivity: Supports Wi-Fi 5, Bluetooth 5.0, 4G LTE, GPS, and 100M Ethernet.
Portable Operation: Portable charger support allows the Falcon 1 to operate on the go.
Compact Business Solution: Combines multiple POS functions into one device, helping reduce countertop clutter.
