AM Retail and Technology

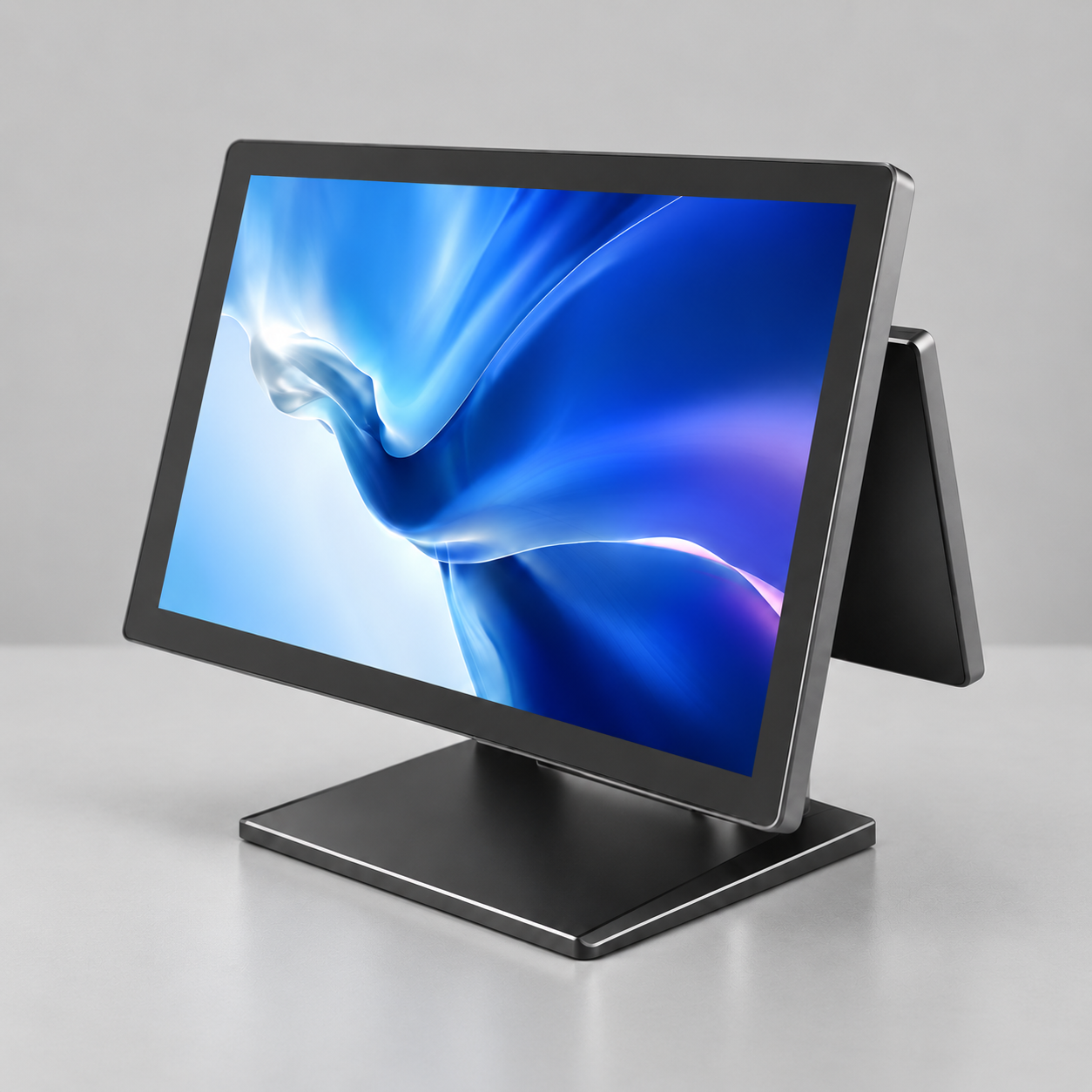

RTP4 SMART DESKTOP ANDROID POS TERMINAL

The RTP4 Smart Desktop Android POS Terminal is a stable and durable POS solution designed with an industrial and stylish exterior. It is powered by a quad-core 2.0GHz ARM Cortex-A55 high-performance processor and runs on Android 13.0. With rich I/O interfaces, plenty of peripheral support, VESA-standard wall-mounted design, and a modular structure supporting an extendable 2nd display, the RTP4 provides flexible and efficient operation for modern POS environments.

Main Features

Quad-core 2.0GHz ARM Cortex-A55 high-performance processor
Android 13.0 operating system
4GB RAM + 64GB ROM as standard
Optional 8GB RAM + 128GB ROM
15.6" FHD 1920 × 1080 capacitive multi-touch display
Optional 15.6" HD 1366 × 768 display
Optional 10.1" 1024 × 600 2nd display
Rich I/O interfaces with 6 × USB ports
1 × DB9 + 1 × RJ11 COM interfaces
1 × RJ12 cash drawer interface and 1 × RJ45 Ethernet interface
2 × 2W speakers with headset jack
2.4GHz & 5GHz dual-band Wi-Fi and BT4.2 + BLE
VESA-standard wall-mounted design
Modular design for efficient user service and extendable 2nd display

Key Highlights

High-Performance Processor: Equipped with a quad-core 2.0GHz ARM Cortex-A55 processor for stable and efficient POS operation.
Android 13.0: Runs on Android 13.0 for a modern desktop POS platform.
Large Touch Display: Features a 15.6" FHD 1920 × 1080 capacitive multi-touch screen, with an optional 15.6" HD display.
Rich I/O Interface: Provides 6 × USB, DB9, RJ11, RJ12, RJ45, headset jack, and DC power interfaces.
Wireless Connectivity: Supports 2.4GHz & 5GHz dual-band Wi-Fi and BT4.2 + BLE.
Modular Design: Supports efficient user service and an extendable 2nd display.
Wall-Mounted Design: Designed to meet VESA standards for wall-mounted installation.

Technical Specifications

Performance Parameters	CPU	ARM Cortex-A55, Quad-Core 2.0GHz
	OS	Android 13.0
	Memory	4GB RAM + 64GB ROM; 8GB RAM + 128GB ROM (Optional)
	Expansion Storage	2 × USB 3.0 + 3 × USB 2.0
Physical Characteristics	Main Display	15.6" FHD 1920 × 1080; 15.6" HD 1366 × 768 (Optional); Capacitive Multi-Touch Screen
	2nd Display	10.1" 1024 × 600 (Optional)
	USB	6 × USB
	COM	1 × DB9 + 1 × RJ11
	Cash Drawer Interface	1 × RJ12
	Ethernet Interface	1 × RJ45
	Audio Jack	1 × Headset Jack
	Power Interface	1 × φ5.5mm DC Jack
	Key	Power Key
	Notification	Tone, Power Indicator
	Audio	2 × Speaker (2W)
	Dimensions	380mm × 186mm × 288mm
Wireless Data Communication	Wired LAN	Ethernet TCP/IP 1000M
	Wireless LAN	2.4GHz & 5GHz dual-band Wi-Fi IEEE 802.11 a/b/g
	Wireless PAN	BT4.2 + BLE
Environmental Parameter	Operating Temperature	0°C ~ +40°C
	Storage Temperature	-20°C ~ +60°C
	Humidity	5% ~ 95%RH (No condensation)
Accessories	Standard	Power Adaptor ×1, USB Cable ×1, Battery ×1
Accessories	Optional	Face Recognition Camera, MSR, NFC
Warranty	01 Year
Warranty Type	Field Support

Design & Connectivity

Industrial and stylish exterior design
VESA-standard wall-mounted design
Modular design for efficient user service

Extendable 2nd display support
Plenty of peripheral support
Rich I/O interface for POS connectivity

Optional Accessories

10.1" 1024 × 600 2nd Display
15.6" HD 1366 × 768 Main Display
8GB RAM + 128GB ROM

Face Recognition Camera
MSR
NFC

Product Highlights

Stable & Durable: Designed as a stable and durable desktop Android POS terminal.
High-Performance Processing: Quad-core 2.0GHz ARM Cortex-A55 processor provides high-performance POS processing.
Large Touchscreen: 15.6" FHD capacitive multi-touch display provides a large interactive interface.
Peripheral Support: Rich I/O interfaces support multiple POS peripherals and connection requirements.
Flexible Installation: VESA-standard wall-mounted design provides flexible installation options.
Modular & Extendable: Modular construction supports efficient user service and an extendable 2nd display.
