NEWLAND HR 2000

The Newland HR2000 Handheld Scanner is a cost-effective 1D and 2D barcode scanning solution designed for retail applications. It combines an ergonomic and elegant design with durable IP52-sealed, 1.5m drop-resistant construction and no moving parts. Equipped with an outstanding CPU, the HR2000 efficiently captures high-density, high-volume, and distorted barcodes printed on paper or displayed on screens.

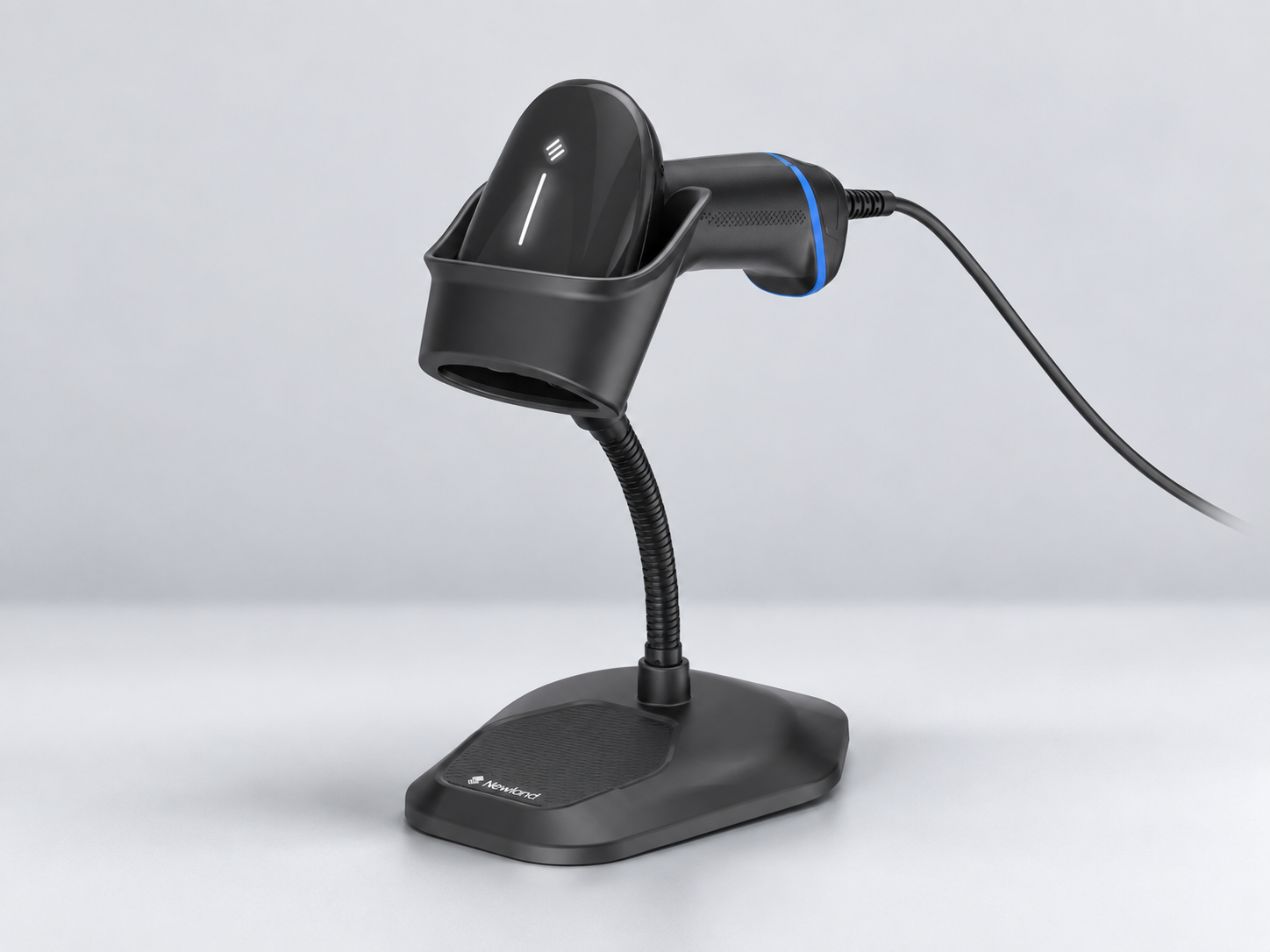

Newland HR2000 Handheld Scanner

Main Features

  • Supports 1D and 2D barcode scanning
  • Cost-effective 2D barcode scanning solution
  • 640×480 CMOS image sensor with white LED illumination
  • Red LED aiming for accurate barcode positioning
  • Outstanding CPU for high-performance barcode capture
  • Efficiently captures high-density, high-volume, and distorted barcodes
  • Reads barcodes printed on paper or displayed on screens
  • IP52-sealed housing for reliable protection
  • 1.5m drop-resistant construction with no moving parts
  • Ergonomic and elegant design for comfortable intensive handheld scanning
  • Supports USB and optional RS-232 interfaces
  • Minimum barcode resolution of ≥3mil
  • Field of view of 45° horizontal and 34° vertical
  • Beep, LED, and vibration notifications
  • Supports QR Code, PDF417, Aztec, Data Matrix, Micro PDF417, Micro QR, and multiple 1D symbologies

Applications

  • Retail

Performance Specifications

Image Sensor 640×480 CMOS
Illumination White LED
Aiming Red LED
Symbologies 1D: Code 11, Code 128, Code 39, Code 39, Code 32 (Italian Pharma Code), GS1-128 (UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1 Databar (RSS)

2D: PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR
Resolution ≥3mil
Typical Depth of Field EAN-13: 40mm-260mm (13mil)
Code 39: 30mm-150mm (5mil)
PDF417: 30mm-120mm (6.7mil)
Data Matrix: 20mm-125mm (10mil)
Scan Angle Pitch: ±60°
Skew: ±60°
Roll: 360°
Field of View Horizontal 45°, Vertical 34°
Minimum Symbol Contrast 20% (Code 128 10mil)

Physical Specifications

Dimensions (L × W × H) 117.5 × 144 × 67.5mm
Weight 111g
Connectivity Corded
Interfaces RS-232 (Optional), USB
Notification Beep, LED, Vibration
Operating Voltage 5VDC ±5%
Rated Power Consumption 1223mW (typical)
Current @ 5VDC Operating: 245.7mA (typical), 248.9mA (max.)
Idle: 157.12mA

Environmental Specifications

Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5%~95% (non-condensing)
ESD ±15 KV (air discharge); ±8 KV (direct discharge)
Drop 1.5m
Sealing IP52

Certifications

Certificates CE, FCC, RoHS 2.0, IEC62471

Product Highlights

  • Cost-effective Solution: Provides 2D barcode scanning capabilities at a cost comparable to a 1D scanner.
  • Durable Construction: IP52-sealed and 1.5m drop-resistant housing with no moving parts.
  • Elegant Appearance: Ergonomic design provides operator comfort and productivity during intensive handheld scanning.
  • Outstanding Performance: CPU-based scanning efficiently captures high-density, high-volume, and distorted barcodes.
