NEWLAND FR 42

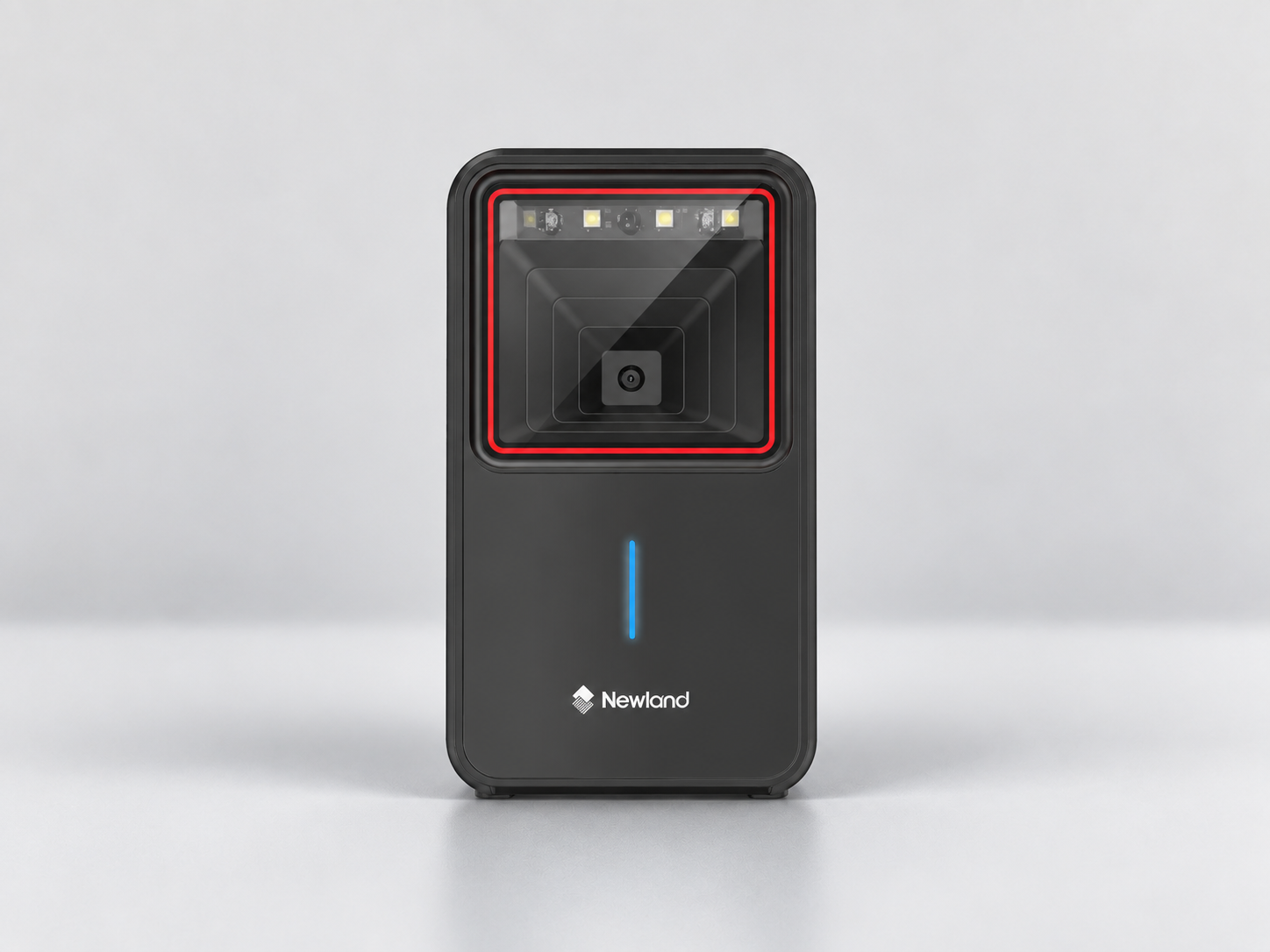

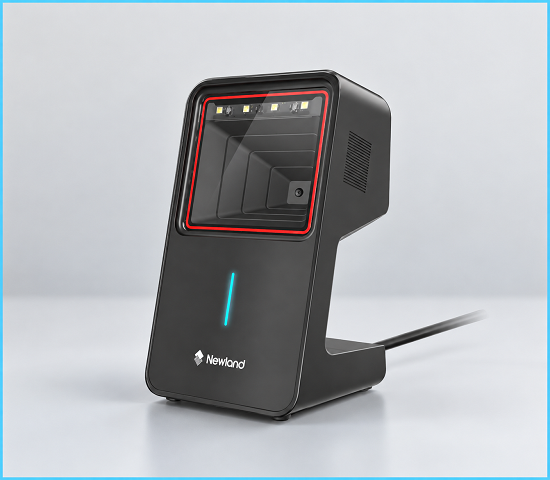

The Newland FR42 Desktop Scanner is a reliable 1D and 2D barcode scanning solution designed for retail applications. It features a 640×480 CMOS image sensor with white LED illumination and provides fast, accurate scanning of high-volume 2D and on-screen barcodes, including screens covered with protective film. With superior motion tolerance up to 2m/s, a large field of view, IR trigger, IP52-rated sealing, and 1.5m drop resistance, the FR42 delivers dependable scanning performance.

Main Features

Supports 1D and 2D barcode scanning
640×480 CMOS image sensor with white LED illumination
Snappy on-screen barcode capture, including screens covered with protective film
Superior motion tolerance up to 2m/s for fast barcode capture
Large field of view of 62° horizontal and 48° vertical
IR trigger for speedy barcode capture and increased productivity
IP52-rated sealing for protection against dust, water, and other contaminants
1.5m drop resistance to concrete for six sides
USB interface for connectivity
Minimum barcode resolution of ≥3mil
Sense mode and continuous mode scanning
Supports QR Code, PDF417, Data Matrix, Micro QR, and multiple 1D symbologies
Beep and LED notification indicators
Operating current of 85mA typical and 92mA maximum

Applications

Retail

Performance Specifications

Image Sensor	640×480 CMOS
Illumination	White LED
Symbologies	2D: PDF417, QR Code, Data Matrix, Micro QR, etc. 1D: Code 11, Code 128, Code 39, Code 32 (Italian Pharma Code), GS1-128, AMI 128, Codabar, Code 93, UPC-A, UPC-E, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-14, ITF-6, Standard 2 of 5, MSI-Plessey, Plessey, GS1 Databar, etc.
Resolution	≥3mil
Typical Depth of Field	EAN-13: 5mm-145mm (13mil) QR Code: 5mm-50mm (15mil)
Scan Angle	Pitch: ±55° Roll: 360° Skew: ±65°
Minimum Symbol Contrast	25%
Field of View	Horizontal 62°, Vertical 48°
Motion Tolerance	2m/s
Scan Mode	Sense mode, continuous mode

Physical Specifications

Dimensions (L × W × H)	82.0 × 77.0 × 146.0mm
Weight	246g
Connectivity	Corded
Interfaces	USB
Notification	Beep, LED
Operating Current	85mA (typical), 92mA (max.)
Operating Voltage	5VDC ±5%
Light Intensity	0~15000lux (screen barcode) 0~120000lux (paper barcode)

Environmental Specifications

Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5%~95% (non-condensing)
ESD	±12 KV (air discharge); ±8 KV (contact discharge)
Drop	1.5m / 4.9ft
Sealing	IP52

Certifications

Certificates	IEC 62471, RoHS, CE, FCC

Product Highlights

1.5m Drop Resistance: Withstands multiple 1.5m drops to concrete for six sides.
IP52-rated Sealing: Protects the scanner against the ingress of dust, water, and other contaminants.
IR Trigger: Enables speedy barcode capture to increase throughput and productivity.
Snappy On-screen Barcode Capture: Reads 1D and high-volume 2D barcodes from screens covered with protective film.
Superior Motion Tolerance: Exceptional motion tolerance up to 2m/s combined with a large field of view of 62° horizontal and 48° vertical.
