NEWLAND FR 8080

The Newland FR8080 On-counter Scanner is a high-performance 1D and 2D barcode scanning solution designed for retail, kiosk, and mobile payment applications. It uses Newland's UIMG+AIBD technology with a multi-core processing platform to provide fast and stable decoding of wrinkled, reflective, curved, and moving barcodes. Advanced OCR recognition supports accurate data capture from IDs and documents, while its large scan window, multiple status indicators, IP52 sealing, and high motion tolerance provide reliable and convenient scanning performance.

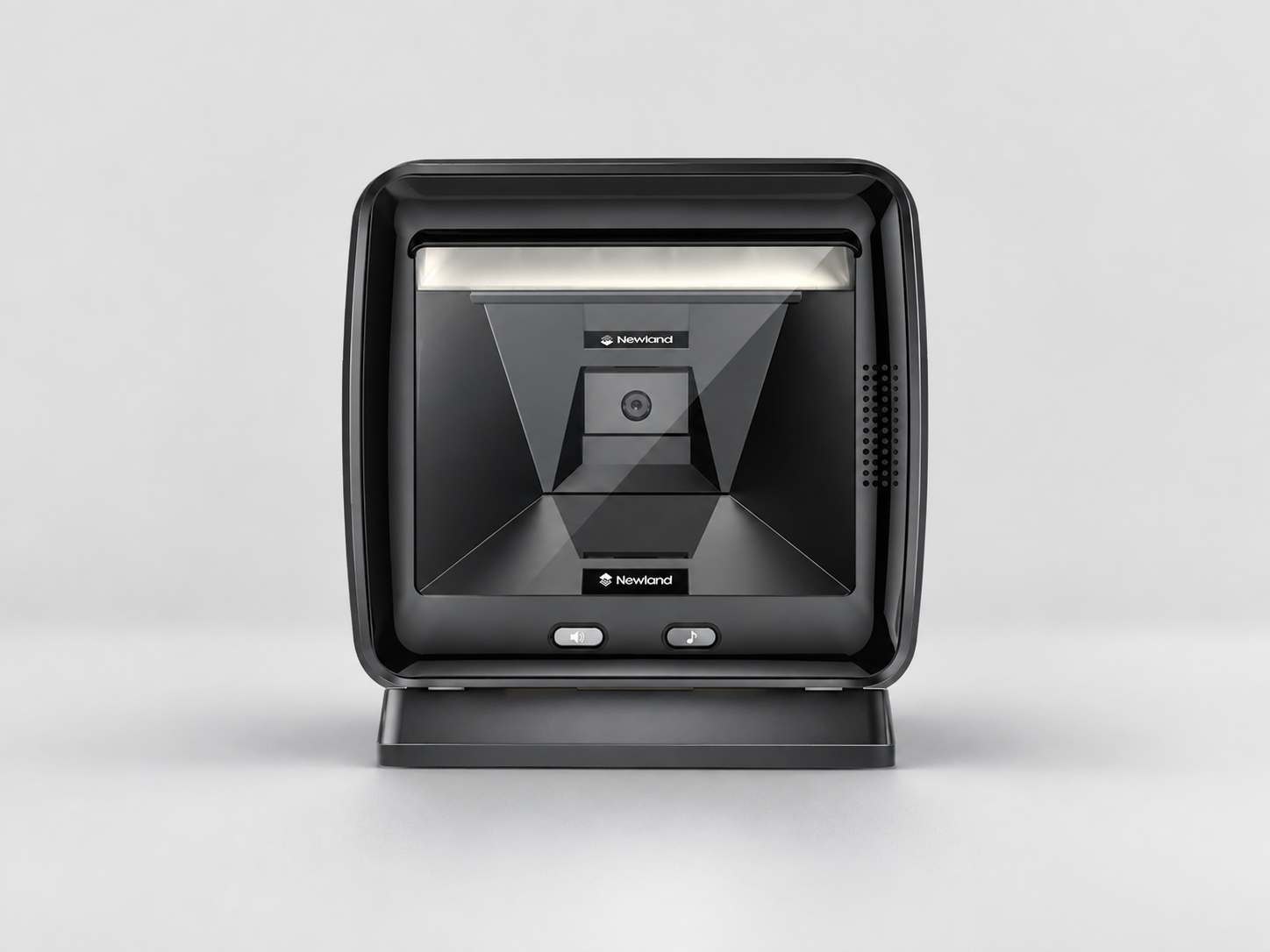

Newland FR80 On-counter Scanner

Main Features

  • Supports 1D and 2D barcode scanning
  • UIMG+AIBD technology for superior scanning performance
  • Efficiently decodes wrinkled, reflective, and curved barcodes
  • Advanced OCR recognition for IDs and documents
  • Supports Passport OCR, Chinese ID Card, and China Travel Permit OCR
  • Multi-core processing platform for faster and more stable decoding
  • Six status indicators for decoding, configuration, communication, and abnormal status
  • Large scan window for goods with different sizes
  • High motion tolerance for quickly capturing moving goods
  • Sound effect and volume keys for application environments
  • IP52 sealing for reliable protection
  • USB and RS-232 interfaces
  • Minimum barcode resolution of ≥3mil (1D)
  • Field of view of 42.4° horizontal and 36° vertical
  • Supports QR Code, Data Matrix, PDF417, Aztec, and multiple 1D symbologies

Applications

  • Retail
  • Kiosk
  • Mobile Payment

Performance Specifications

Image Sensor 1280 × 1088 CMOS
Illumination Red LED (614nm~624nm)
Symbologies 2D: QR, DataMatrix, PDF417, Aztec

1D: Code 11, Code 128, Code 39, GS1-128 (UCC/EAN128), AIM 128, ISBT 128, CodaBar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China post 25, MSI-Plessey, Plessey, GS1 Composite, GS1 Databar (RSS)

OCR: Passport OCR, Chinese ID Card, China Travel Permit OCR
Resolution ≥3mil (1D)
Typical Depth of Field 0mm-140mm (EAN-13 13mil)
50mm-90mm (EAN-13 5mil)
Scan Angle Roll: 360°
Pitch: ±55°
Skew: ±50°
Minimum Symbol Contrast 15%
Field of View Horizontal 42.4°, Vertical 36°

Physical Specifications

Dimensions (L × W × H) Without base: 151(W) × 141.5(H) × 97.5(D)mm (max.)
With base: 151(W) × 156.5(H) × 108.5(D)mm (max.)
Weight 549g (without base), 681g (with base)
Connectivity Corded
Interfaces RS-232, USB
Notification Speaker, LED
Operating Voltage 5VDC ±5%
Current @ 5VDC Operating: 280mA (typical), 800mA (max.)
Idle: 155mA

Environmental Specifications

Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% (non-condensing)
ESD ±15 KV (air discharge); ±8 KV (direct discharge)
Sealing IP52

Certifications

Certificates FCC Part15 Class B, CE EMC Class B

Product Highlights

  • Superior Scanning Performance: UIMG+AIBD technology provides reliable decoding of wrinkled, reflective, and curved barcodes.
  • Powerful OCR Recognition: Advanced OCR technology enables accurate data capture from IDs and documents.
  • Advanced Processing: Multi-core processing platform delivers faster and more stable decoding performance.
  • Large Scan Window: Designed to meet scanning requirements for goods with different sizes.
  • High Motion Tolerance: Quickly captures moving goods for efficient scanning operations.
  • IP52 Protection: IP52 sealing provides reliable protection during operation.
