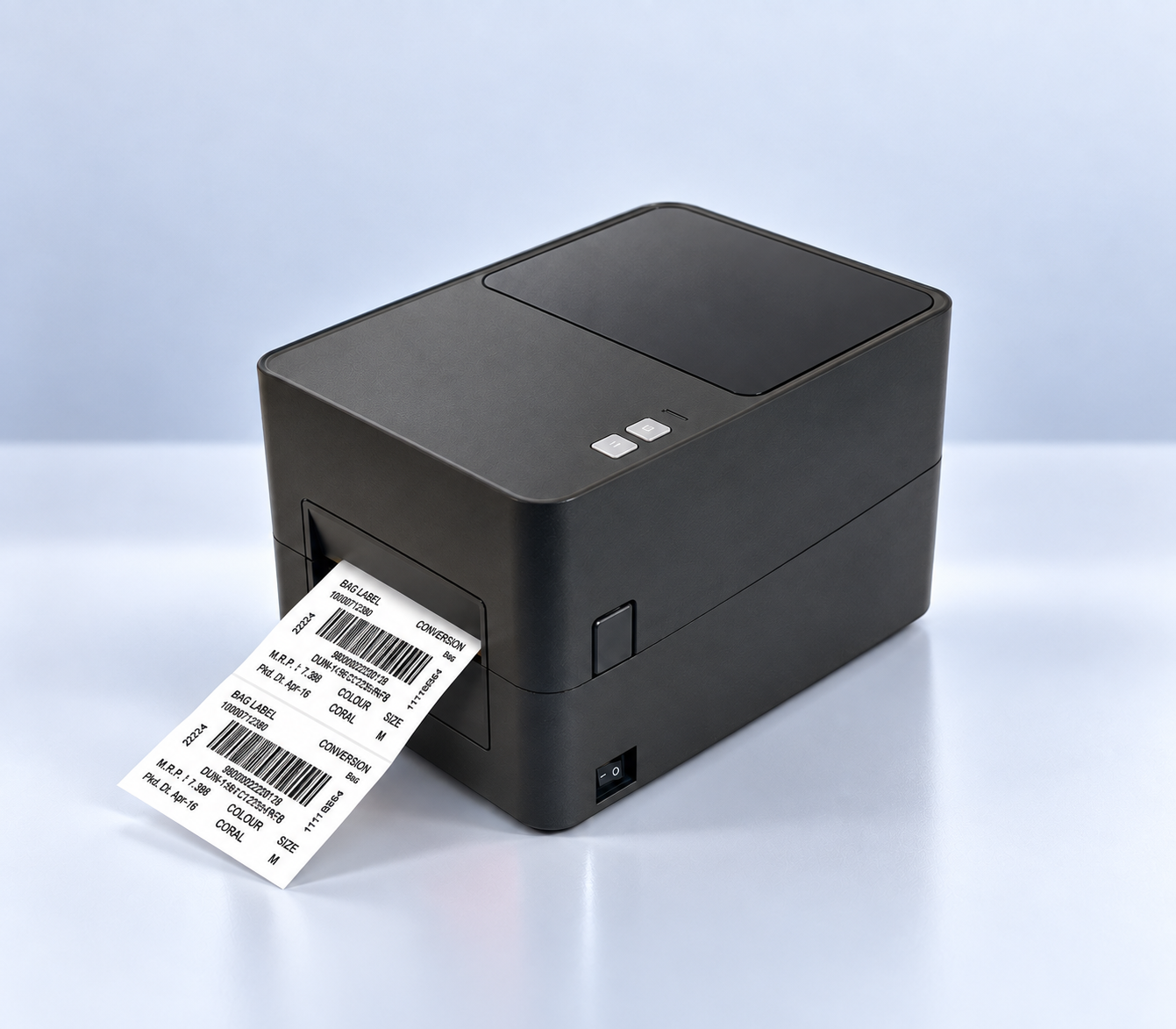

BP4206e BARCODE PRINTER

The BP4206e Barcode Printer is a high-performance desktop barcode printer designed for fast and reliable label printing. It delivers printing speeds of up to 152.4 mm/s (6 IPS) with 203 DPI resolution and a maximum print width of 108 mm. Powered by a 1.1GHz 32-bit RISC processor, 64 MB SDRAM, and 128 MB Flash memory, it features a mechanism structure designed for easy maintenance. USB and Ethernet interfaces are provided as standard, with optional Wi-Fi and Bluetooth connectivity.

Main Features

Printing speed up to 152.4 mm/s (6 IPS)
203 DPI printing resolution
1.1GHz 32-bit RISC processor
64 MB SDRAM
128 MB Flash memory
USB and Ethernet interfaces as standard
Optional Wi-Fi and Bluetooth connectivity
Easy-to-maintain mechanism structure design
Supports ZPL, EPL, and TSPL emulation
Supports thermal transfer printing
Optional peeler, cutter, and external paper stand
Free Seagull Windows driver and Bartender software
HPRT drivers and label design software

Key Highlights

High-Speed Printing: Provides printing speeds of up to 152.4 mm/s (6 IPS).
Powerful Processing: Equipped with a 1.1GHz 32-bit RISC processor, 64 MB SDRAM, and 128 MB Flash memory.
Easy Maintenance: Features a mechanism structure design that makes maintenance easier.
Flexible Connectivity: USB and Ethernet interfaces are standard, with optional Wi-Fi and Bluetooth connectivity.
Command Compatibility: Supports ZPL, EPL, and TSPL emulation.
Optional Accessories: Supports accessories including a peeler, cutter, and external paper stand.

Technical Specifications

Print Speed	6 IPS (152.4 mm/s)
Print Method	Thermal Transfer
Resolution	203 DPI
Print Width	108 mm (203 DPI)
Processor	1.1GHz 32-bit RISC processor
Memory	64 MB SDRAM
Flash Memory	128 MB Flash memory
Interface	USB, Ethernet
Optional Interface	Wi-Fi, Bluetooth
Ribbon Length	Maximum 984 feet (300 m)
Ribbon Width	40 mm ~ 110 mm
Ribbon Core	1 inch (25.4 mm)
Media O.D.	Maximum 5 inches (127 mm)
Media I.D.	1 inch (25.4 mm), 1.5 inches (38 mm)
Media Type	Black mark label, punched hole label, folding or rolling die cutting label
Programming Language	ZPL, TSPL, EPL

Software & Driver Support

Free Seagull Windows driver
Bartender label design software
HPRT drivers and label design software
Supports ZPL, EPL, and TSPL emulation

Optional Accessories

Peeler
Cutter
External paper stand

Product Highlights

Fast Label Printing: Prints at speeds of up to 152.4 mm/s (6 IPS) with 203 DPI resolution.
Powerful Hardware: Includes a 1.1GHz 32-bit RISC processor, 64 MB SDRAM, and 128 MB Flash memory.
Easy Maintenance: Mechanism structure design supports convenient maintenance.
Standard Connectivity: USB and Ethernet interfaces are provided as standard.
Wireless Options: Wi-Fi and Bluetooth connectivity are available as optional interfaces.
Flexible Media Support: Supports black mark, punched hole, folding, and rolling die-cutting labels.
Wide Ribbon Capacity: Supports ribbons up to 300 meters in length and 40 mm ~ 110 mm in width.
