NEWLAND FR 4080

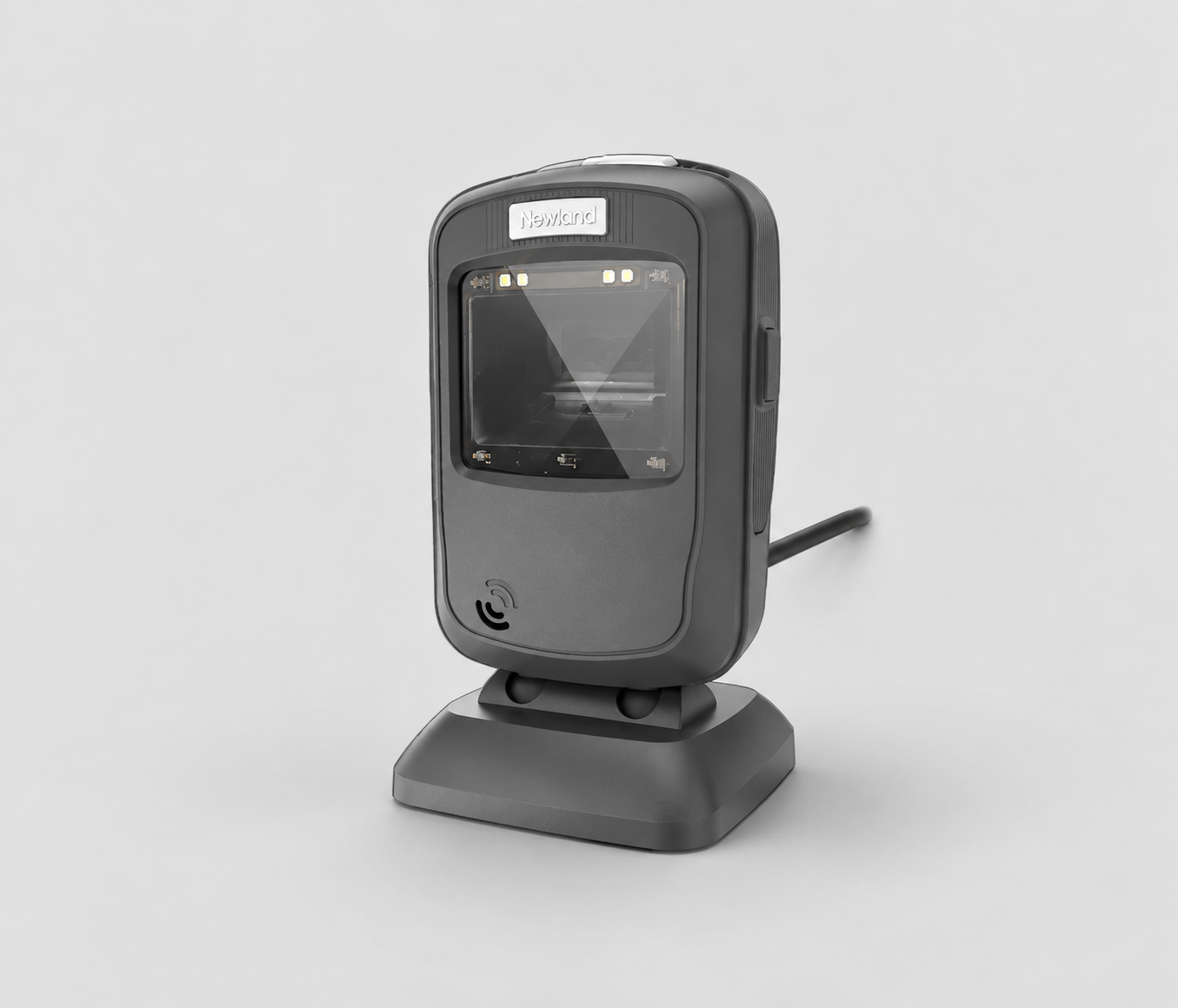

The Newland FR4080 Desktop Scanner is a high-performance 1D and 2D barcode scanning solution designed for retail, mobile payment, and public sector applications. It features a 1280×800 CMOS image sensor and an upgraded dual-core processing platform for faster, more stable decoding with lower power consumption. The scanner provides seamless reading of paper and screen barcodes, while its IR trigger, IP52-rated sealing, and 1.2m drop resistance support reliable operation in demanding environments.

Main Features

Supports 1D and 2D barcode scanning
1280×800 CMOS image sensor with white LED illumination
Upgraded dual-core processing platform for faster and more stable decoding
Lower power consumption with improved computing capability and efficiency
Seamless reading of barcodes from paper and screens without switching
IR trigger for speedy barcode capture and improved productivity
IP52-rated sealing for protection against dust, water, and other contaminants
1.2m drop resistance to concrete for six sides
USB and RS-232 interfaces
Minimum barcode resolution of ≥3mil
Field of view of 51° horizontal and 32° vertical
Reduces scanning interruptions with reliable decoding performance
Supports QR Code, Micro QR Code, Data Matrix, PDF417, Aztec, and multiple 1D symbologies
Beep and LED notification indicators

Applications

Retail
Mobile Payment
Public Sector

Performance Specifications

Image Sensor	1280×800 CMOS
Illumination	White LED
Symbologies	2D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc. 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.
Resolution	≥3mil
Typical Depth of Field	EAN-13: 10-280mm (13mil) QR Code: 10-190mm (15mil)
Scan Angle	Pitch: ±50° Roll: 360° Skew: ±50°
Minimum Symbol Contrast	25%
Field of View	Horizontal 51°, Vertical 32°

Physical Specifications

Dimensions (W × D × H)	83 × 81 × 148mm
Weight	290g
Connectivity	Corded
Interfaces	RS-232, USB
Notification	Beep, LED
Operating Voltage	5VDC ±5%
Rated Power Consumption	1375mW (typical)
Current @ 5VDC	Operating: 275mA (typical)

Environmental Specifications

Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5%~95% (non-condensing)
ESD	±14 KV (air discharge); ±8 KV (direct discharge)
Drop	1.2m drops to concrete (for six sides, one drop per side)
Sealing	IP52

Certifications

Certificates & Protection	FCC Part15 Class B, CE EMC Class B, RoHS

Product Highlights

Seamless Reading: Reads paper and screen barcodes seamlessly without switching.
AI-powered Decoding Performance: Upgraded dual-core processing platform provides faster and more stable decoding with lower power consumption.
IP52-rated Sealing: Protects the scanner against the ingress of dust, water, and other contaminants.
1.2m Drop Resistance: Withstands multiple 1.2m drops to concrete for six sides.
IR Trigger: Enables speedy barcode capture to increase throughput and productivity.
