NEWLAND HR 32

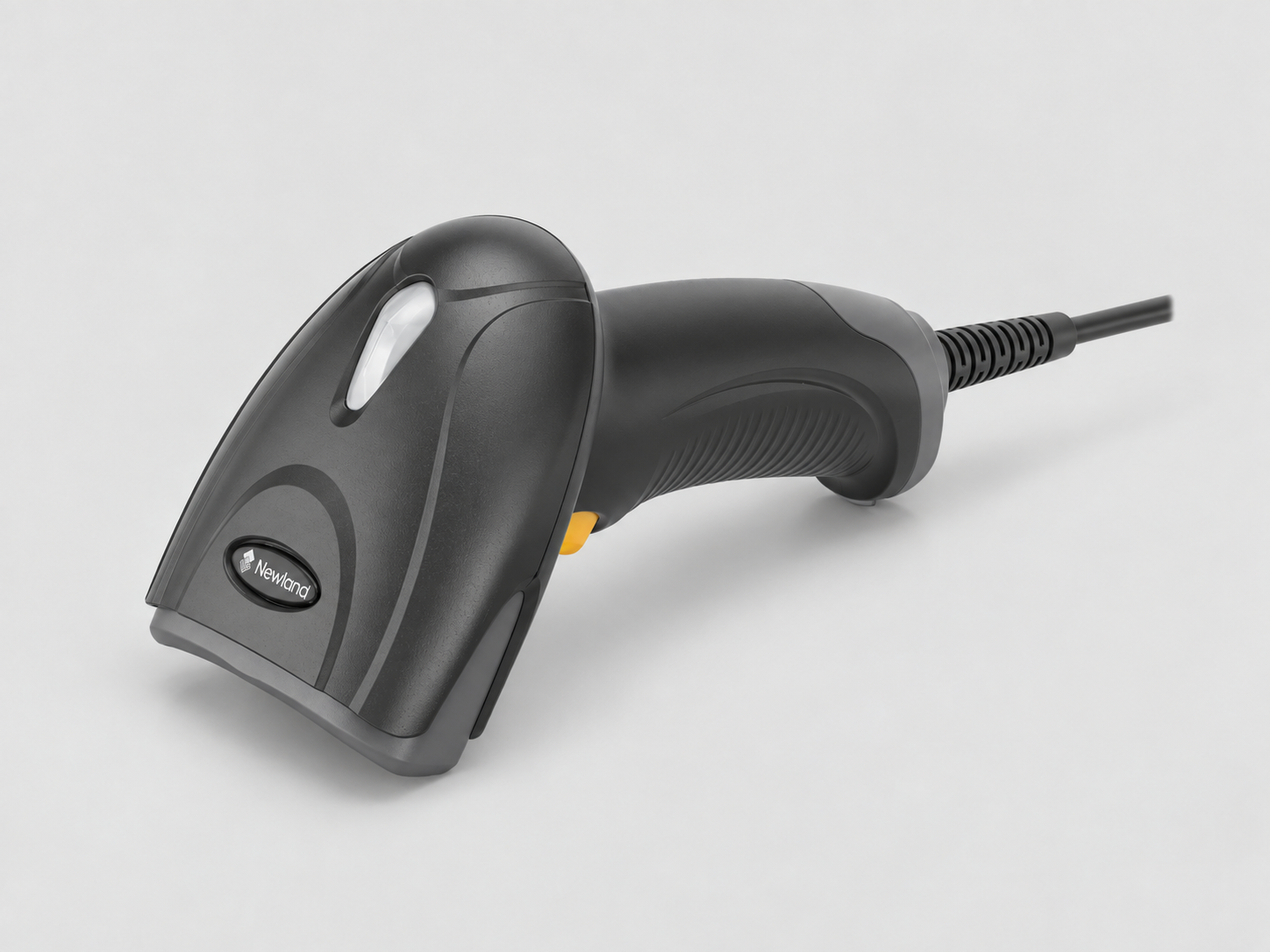

The Newland HR32 Handheld Scanner is a durable and versatile 1D, 2D, and postal barcode scanning solution designed for demanding applications. Built with an IP42-sealed and 1.5m drop-resistant housing, the HR32 provides reliable operation in retail, warehouse, mobile payment, transportation and logistics, manufacturing, and public sector environments. Its six-generation UIMG® technology enables efficient on-screen barcode and postal barcode scanning, while its dual-color red and white LED illumination provides flexible lighting options for different applications.

Main Features

Supports 1D, 2D, and postal barcode scanning
1280×800 megapixel CMOS image sensor
Six-generation UIMG® technology for enhanced data capture
Supports postal barcode decoding for extended data capture capabilities
Excellent on-screen barcode scanning performance, including screens with protective film
Reliable scanning even when screens are set to their lowest brightness level
Powerful data editing capability for customized scanned data
Dual-color red and white LED illumination for flexible lighting requirements
IP42-sealed housing for reliable protection
1.5m drop-resistant construction for demanding environments
Minimum barcode resolution of ≥3mil
Green LED aiming for accurate barcode positioning
USB and RS-232 interfaces
Beep and LED notification indicators
Supports QR Code, PDF417, Data Matrix, Aztec, Maxicode, postal barcodes, and multiple 1D symbologies

Applications

Retail
Warehouse
Mobile Payment

Transportation & Logistics
Manufacturing
Public Sector

Performance Specifications

Image Sensor	1280×800 (megapixel) CMOS
Illumination	Red LED / White LED
Aiming	Green LED
Symbologies	1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. 2D: PDF417, QR Code, Data Matrix, Aztec, Maxicode, etc. Postal: USPS Postnet, Royal Mail, KIX Post, Australian Postal, etc.
Resolution	≥3mil
Typical Depth of Field	EAN-13: 55mm-570mm (13mil) Code 39: 115mm-170mm (5mil) PDF 417: 85mm-225mm (6.7mil) Data Matrix: 65mm-305mm (10mil) QR Code: 25mm-395mm (15mil)
Scan Angle	Pitch: ±55° Skew: ±55° Roll: 360°
Minimum Symbol Contrast	25%
Field of View	Horizontal 39°, Vertical 24°

Physical Specifications

Dimensions (L × W × H)	113.5(W) × 73.3(D) × 159.0(H)mm
Weight	162g
Connectivity	Corded
Interfaces	RS-232, USB
Notification	Beep, LED
Operating Voltage	5VDC ±5%
Rated Power Consumption	1289.6mW (typical)
Current @ 5VDC	Operating: 238.2mA (typical), 260.5mA (max.) Idle: 71.3mA

Environmental Specifications

Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5%~95% (non-condensing)
ESD	±15 KV (air discharge); ±8 KV (contact discharge)
Drop	1.5m
Sealing	IP42

Certifications

Certificates	FCC Part15 Class B, CE EMC Class B, RoHS

Product Highlights

Durable Construction: IP42-sealed and 1.5m drop-resistant housing designed for tough environments.
Extensive Data Capture: Six-generation UIMG® technology provides 1D, 2D, and postal barcode decoding.
On-screen Barcode Scanning: Delivers reliable reading performance for on-screen barcodes, including screens covered with protective film or set to their lowest brightness level.
Powerful Data Editing: Provides customized scanned data editing capabilities to support diverse application needs.
Dual-color Illumination: Combines red and white LEDs that can be used separately or together to meet different lighting requirements.
